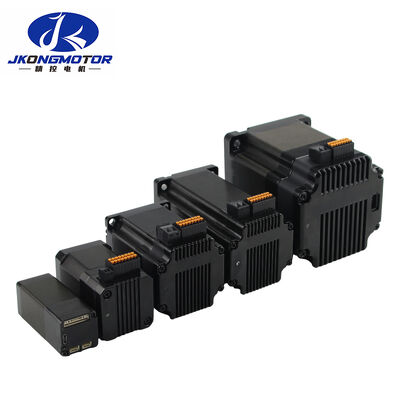

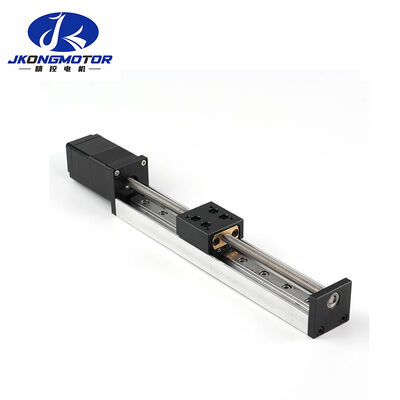

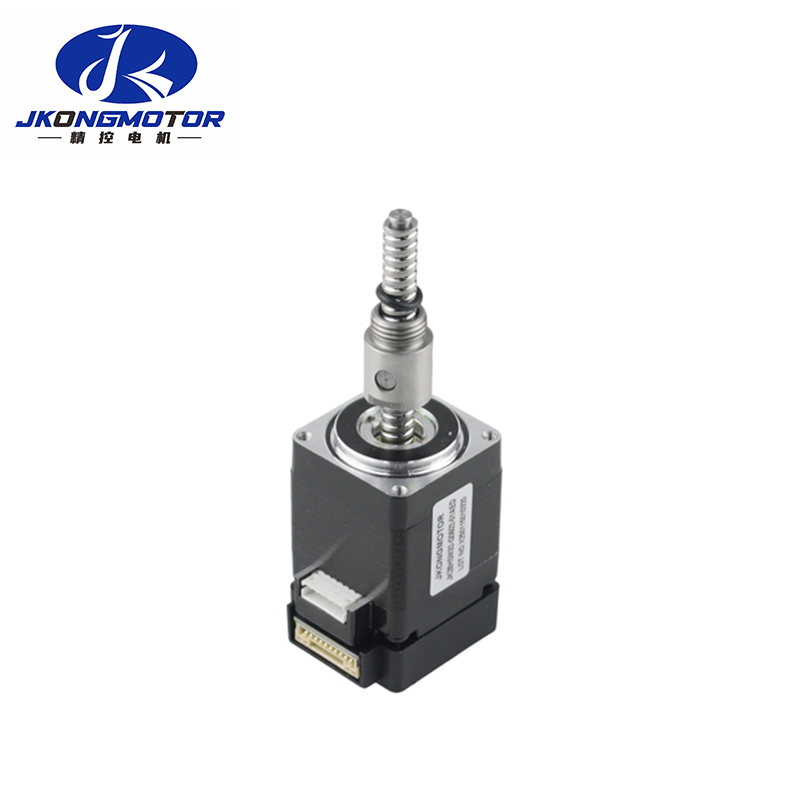

Jkongmotor JKISC28-R2A3 RS485 ModBUS RS485 Linear Stepper Motor With Integrated Driver for Laboratory Automation Actuator

Jkongmotor JKISC28 RS485 CANopen Integrated Closed Loop Linear Stepper Motor with Built in Driver for Medical Dosing Actuator

Product Description:

Characteristics of Integrated Dc Servo Motor

Model naming rules for low voltage integrated dc servo motor

Features:

1. Adopting a new 32-bit M4+core with 120M or 240M main frequency
2. Stable torque characteristics from low to high speeds, with high speed and precision
3. Equipped with brake resistor interface to prevent damage to the electromechanical braking system
4. Wide speed range, low temperature rise, and high efficiency
5. Integrated motor and drive, compact size, simple wiring, and drive Good compatibility with the motor
6. Equipped with overcurrent, overvoltage, over temperature, and over differential protection functions
7. Configure a 17bit single turn absolute encoder



Communication method:

1. Pulse type

2. RS485 MOdbus RTU network type

3. CANopen network type



Protection level:

Waterproof type: IP30, IP54, IP65, optional



Usage:

Medical equipment, logistics transportation, industrial automation, textile machinery, laser, drawing, traditional Chinese
medicine ingredient industry, etc

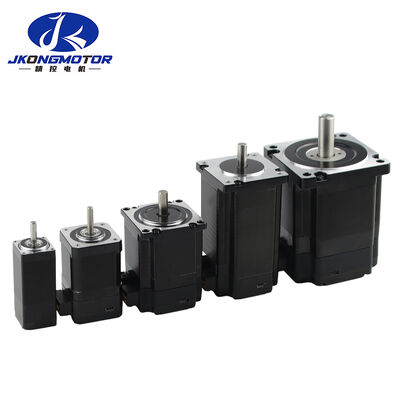

ISC28 Series Nema 11 28mm Pulse RS485 CANopen Integrated Stepper Servo Motor:

Series	V2 Series	Control method (optional)	Step Angle	Phase Current	Phase Resistance	Phase Inductance	Rated Torque	Body Length	Weight	Insulation Class	Integrated Encoder
			(°)	(A)	(Ω)	(mH)	(N.m)	(mm)	(Kg)	/	/
ISC28-0.065Nm	JKISC28-P1A3	Pulse	1.8	1	2.8	1.8	0.065	48.1	0.13	B	1000ppr /17bit /15bit
	JKISC28-R1A3	RS485
	JKISC28-C1A3	CANopen
ISC28-0.095Nm	JKISC28-P2A3	Pulse	1.8	0.67	6.8	5.5	0.095	61	0.17	B	1000ppr /17bit /15bit
	JKISC28-R2A3	RS485
	JKISC28-C2A3	CANopen
ISC28-0.12Nm	JKISC28-P3A3	Pulse	1.8	0.67	8.8	8	0.12	67	0.22	B	1000ppr /17bit /15bit
	JKISC28-R3A3	RS485
	JKISC28-C3A3	CANopen

ISC42 Series Nema 17 42mm Pulse RS485 CANopen Integrated Stepper Servo Motor:

Series

V1 Series

V2 Series

Control method (optional)

Step Angle

Phase Current

Phase Resistance

Phase Inductance

Rated Torque

Body Length

Weight

Insulation Class

Integrated Encoder

(°)

(A)

(Ω)

(mH)

(N.m)

(mm)

(Kg)

/

/

ISC42-0.26Nm

JKISS42-P01A

JKISC42-P1A3

Pulse

1.8

1.33

1.8

2.5

0.26

55.4

0.28

B

1000ppr /17bit /15bit

JKISS42-R01A

JKISC42-R1A3

RS485

JKISS42-C01A

JKISC42-C1A3

CANopen

ISC42-0.42Nm

JKISS42-P02A

JKISC42-P2A3

Pulse

1.8

1.7

1.2

2.8

0.42

61.1

0.34

B

1000ppr /17bit /15bit

JKISS42-R02A

JKISC42-R2A3

RS485

JKISS42-C02A

JKISC42-C2A3

CANopen

ISC42-0.5Nm

JKISS42-P03A

JKISC42-P3A3

Pulse

1.8

1.68

1.55

2.8

0.5

69.9

0.44

B

1000ppr /17bit /15bit

JKISS42-R03A

JKISC42-R3A3

RS485

JKISS42-C03A

JKISC42-C3A3

CANopen

ISC42-0.73N.m

JKISS42-P04A

JKISC42-P4A3

Pulse

1.8

1.7

2.6

6.2

0.73

81.9

0.61

B

1000ppr /17bit /15bit

JKISS42-R04A

JKISC42-R4A3

RS485

JKISS42-C04A

JKISC42-C4A3

CANopen

ISC57 Series Nema 23 57mm Pulse RS485 CANopen Integrated Stepper Servo Motor:

Series

V1 Series

V2 Series

Control method (optional)

Step Angle

Phase Current

Phase Resistance

Phase Inductance

Rated Torque

Body Length

Weight

Insulation Class

Integrated Encoder

(°)

(A)

(Ω)

(mH)

(N.m)

(mm)

(Kg)

/

/

ISC57-0.55Nm

JKISS57-P01A

JKISC57-P1A3

Pulse

1.8

2.8

0.7

1.4

0.55

61.5

0.55

B

1000ppr /17bit /15bit

JKISS57-R01A

JKISC57-R1A3

RS485

JKISS57-C01A

JKISC57-C1A3

CANopen

ISC57-1.2Nm

JKISS57-P02A

JKISC57-P2A3

Pulse

1.8

2.8

0.9

3

1.2

75

0.8

B

1000ppr /17bit /15bit

JKISS57-R02A

JKISC57-R2A3

RS485

JKISS57-C02A

JKISC57-C2A3

CANopen

ISC57-1.89Nm

JKISS57-P03A

JKISC57-P3A3

Pulse

1.8

2.8

1.1

3.6

1.89

96

1.2

B

1000ppr /17bit /15bit

JKISS57-R03A

JKISC57-R3A3

RS485

JKISS57-C03A

JKISC57-C3A3

CANopen

ISC57-2.2N.m

JKISS57-P04A

JKISC57-P4A3

Pulse

1.8

3

1.4

4.5

2.2

102.5

1.3

B

1000ppr /17bit /15bit

JKISS57-R04A

JKISC57-R4A3

RS485

JKISS57-C04A

JKISC57-C4A3

CANopen

ISC57-2.8N.m

JKISS57-P05A

JKISC57-P5A3

Pulse

1.8

4.2

0.75

3

2.8

116.5

1.6

B

1000ppr /17bit /15bit

JKISS57-R05A

JKISC57-R5A3

RS485

JKISS57-C05A

JKISC57-C5A3

CANopen

ISC57-3.0N.m

JKISS57-P06A

JKISC57-P6A3

Pulse

1.8

4.2

0.9

3.8

3

132

1.8

B

1000ppr /17bit /15bit

JKISS57-R06A

JKISC57-R6A3

RS485

JKISS57-C06A

JKISC57-C6A3

CANopen

ISC60 Series Nema 24 60mm Pulse RS485 CANopen Integrated Stepper Servo Motor:
